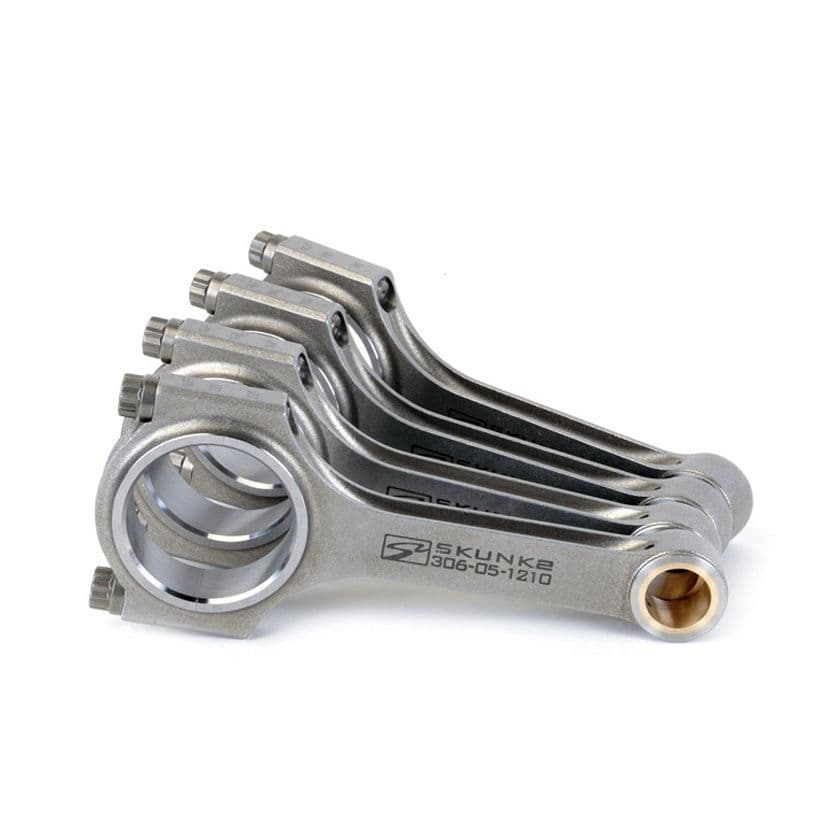

SKUNK2 ALPHA SERIES CONNECTING CON RODS - LITE VERSION D16 D16ZC

Skunk2 is proud to introduce its all-new Lite Alpha Series Connecting Rods for Honda's D16A and ZC engines. The Lite rod is made for lower horsepower application were maximum effort is not required making the rod with a narrower beam we reduced weight. Alpha Series Rods are forged from select 4340 chromoly steel and feature straight H-beam design, resulting in the ultimate strength-to-weight ratio. The D Lite Rods were designed for the Naturally Aspirated or Low Turbo build D Series. The D Lite rods can withstand up to 450+ hp all while maintaining the weight reduction. Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2's rigid specifications. Engineers made use of FEA (Finite Element Analysis) to determine high-stress points and implemented features to reduce wear and increase strength. Skunk2's straight design distributes stress across a larger area when compared to tapered rods, providing additional support where necessary. Alpha Series Rods are manufactured from two-piece forgings, resulting in optimal grain orientation along the rod cap for increased strength. Alpha Series Rods also feature dual oil passages at their pin ends, providing additional lubrication and cooling, which leads to an even stronger, more durable rod. Unlike other designs, Skunk2's carefully positioned, offset oil passages help deliver lubrication around the entire wrist pin, during each phase of the engine cycle. Connecting rod bolts endure more stress than any other engine fastener, there for each Alpha Series Rod features high-quality, Skunk2-branded, 3/8-inch ARP2000 bolts. ARP2000 rod bolts are forged, heat-treated, precision-machined, and capable of clamping loads as high as 220,000 psi. Precision-machined, bronze wrist pin bushings are also fitted to each Alpha Series Rod for increased wear resistance, and are compatible with most aftermarket pistons without additional machining.
Only Skunk2's Alpha Series Rods feature our unique design, precision machining, and are capable of handling more than 450 hp, all at an economical price.

Note:
Length: 137.00mm
Weight: 448 grams
Precision Machined
3/8-Inch ARP2000/Skunk2 bolts
Shot-peened for reduced fatigue
Bronze wrist pin bushings
Laser-etched Skunk2 logo for authenticity
Not compatible with OEM style pistons.
Pin end compatible with most aftermarket pistons without machining
Dual-pin oil passages for increased lubrication and strength
450+ hp capable
Balanced +/- 1 gram
Magna-flux inspected
Heat-treated
FEA analyzed
**Modification to the girdle and or block is necessary**
