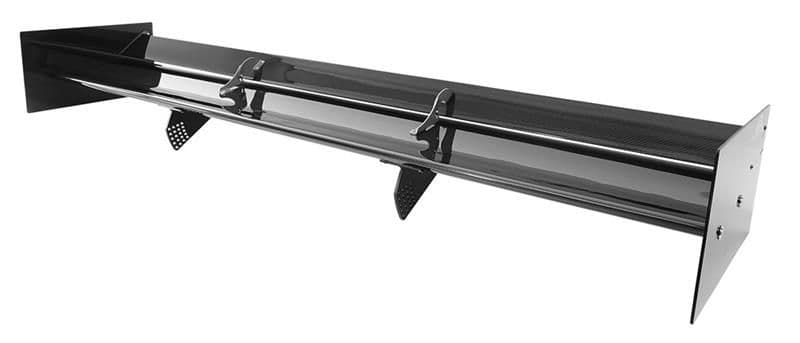

APR 78" TRI-ELEMENT GT WING ( PEDESTALS AND MOUNTS NOT INCLUDED) UNIVERSAL
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Standard Shipping (UK):
Expect delivery in 2–3 working days. We may upgrade your order to Express at no extra charge depending on cart value, location, or items ordered.
Express Shipping (UK):
Sent via premium courier (DHL, UPS, Parcelforce, or FedEx). Most orders placed before 1PM (Mon–Fri) are dispatched the same day for next working day delivery (not guaranteed). Orders after 1PM are shipped next working day.
A working day is Monday–Friday, excluding UK public holidays.
Couriers may deliver on weekends at their discretion, but this is outside our standard policy.
Tracking details will be provided when your order ships.
Stock Information
Stock Information
Please check the stock status before ordering.
A green status means the item is in stock and has been recently verified.
If a product is out of stock or showing “contact us for ETA” just get in touch with us and we’ll give you an accurate restock estimate.
We aim to keep as many products in stock as possible, but due to low demand or special-order items, some products are only available to order in upon request.
Easy Returns
Easy Returns
RHD Performance accept returns on new, unopened products within 30 days of the day you receive your order. To organise your return and get an RMA (Return Merchandise Authoriation) number, please contact us here.
This does not affect your statutory rights.
Spanning up to 71 inches in a dual element airfoil setup, the GT-1000 Dual Element Adjustable Wing is designed for high speed racing applications and supplies extreme downforce in some of the fastest track cars in the world.
BENEFITS
- Ultra-high downforce, up to 1650 pound force (lbf) of downforce (at 160 MPH)
- Angle adjustment holes allow for easy tuning of downforce
- Reinforced pre-preg carbon fiber withstands extreme loads
SPECIFICATIONS
- Pattern 2×2 twill weave
- Material Pre-preg carbon fiber, 3K
- Coating UV-stable clear coat
- Wing Measurement Custom span up to 71, 10 chord (main foil), 4 chord (secondary foil)
- Hardware Stainless-steel machine screws, washers, and nuts
- Mounting 6061 billet aluminum upper brackets (no pedestals or bottom mounting bases included), custom fabrication of pedestals and chassis-mounts required
FEATURES
- Representing the latest in ground-breaking aerodynamic performance, The APR Performance GT-1000 Adjustable Wing features a dual element 2D airfoil combination that is designed to produce extreme downforce for the most demanding racing applications.
- Dual element design allows less air separation at high angles of attack and reduced drag at low angles of attack.
- Angle-of-Attack (AOA) adjustment range runs from 10 to 52 degrees (relative to ground plane) on the secondary airfoil, with no stall at 52 degrees.
- The GT Series airfoils are composed of lightweight and durable pre-preg carbon fiber composite materials for superior strength and low weight.
CHASSIS MOUNTING IS REQUIRED
Do not mount the APR Performance GT-1000 Adjustable Wing assembly to a vehicle trunk lid - the downforce levels can easily deform and damage even factory OEM steel trunk lids and create hazardous conditions. Pedestals are not available for the GT-1000. All customers will be required to fabricate their own, chassis-mount pedestals for their specific applications.
Although the upper brackets (the ones that are permanently attached to the bottom of the main airfoil) have a multitude of mounting holes, the main airfoil is intended to be installed and fixed at exactly one position. For proper installation, the side plates (aka end plates) are to be at exactly 0 degrees AOA relative to the ground plane. The main airfoil ends up being fixed at just under 5 degrees AOA (forward pitch) relative to the ground plane.
Computational Fluid Dynamics (CFD)
Modeled in 3D and validated using Computational Fluid Dynamics (CFD), the APR Performance GT-1000 Adjustable Wing is designed to adapt to a variety of widebody sports and touring car applications.
